Περιγραφή
Χαρακτηριστικά:

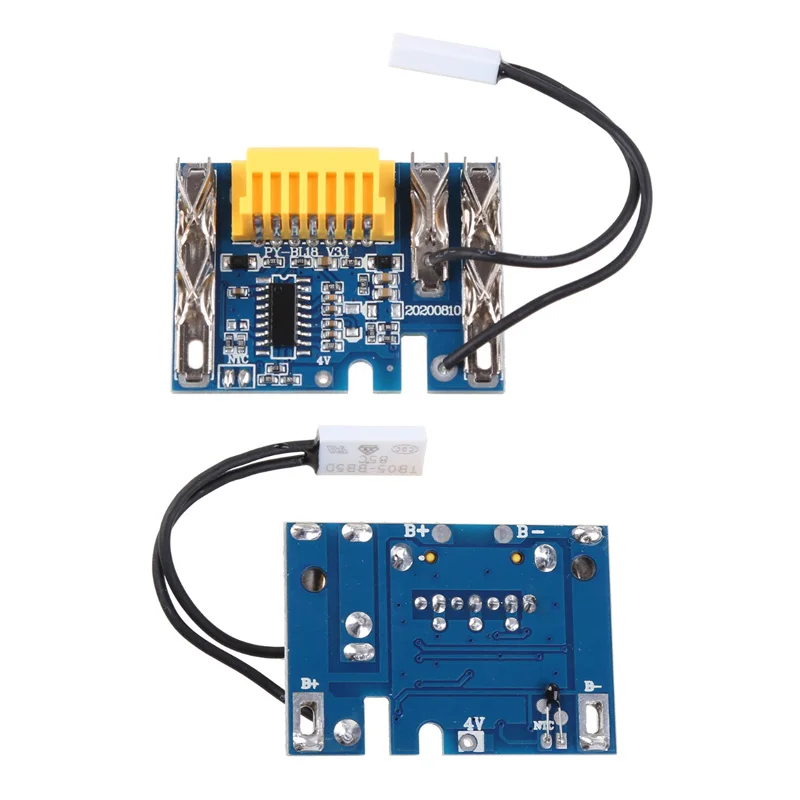

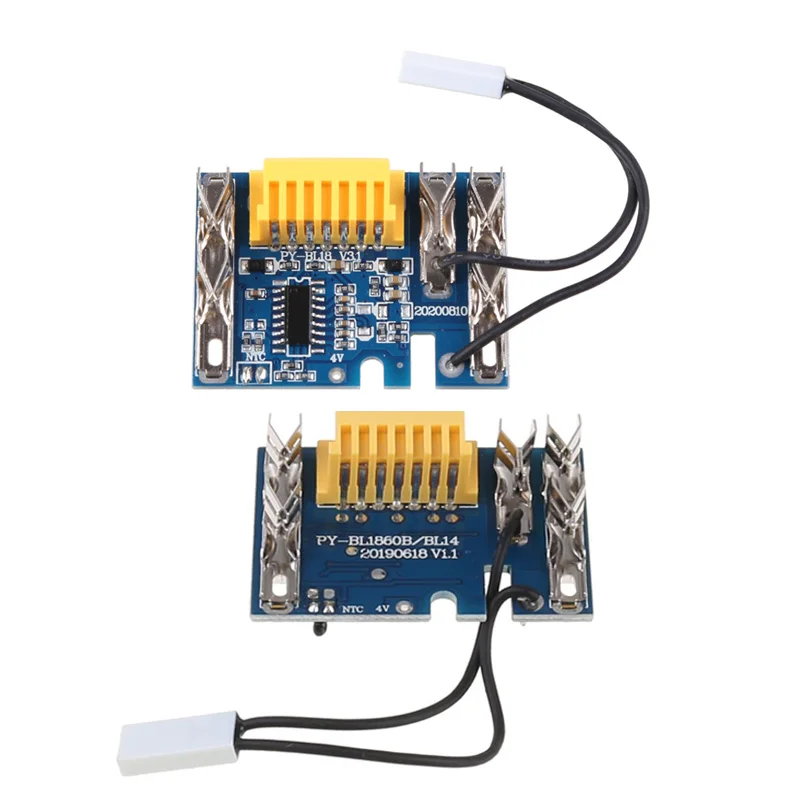

Πλακέτα Συμβατή με Makita 14.4V BL1430, BL1440, BL1450 Power Tool Battery
Αντικαθιστά την χαλασμένη πλακέτα BMS της μπαταρίας σας.
Λειτουργίες:
- Over-charge protection
- Over-discharge protection
- Short circuit protection
- Over current protection
- Reverse charge protection
- Overheat protection
Χαρακτηριστικά:
- Compatible with: for 14.4V BL1430, BL1440, BL1450 power tool battery
- Type: charging protection board
- Voltage: 14.4V
- Nominal Capacity: 3.0Ah
- Battery type: Li-ion
- Battery combination: 4 strings
- Maximum charging current ≤12A
- Overcharge voltage protection: 4.25V
- Overcharge detection delay time: 2S
- Charge and discharge over temperature protection: 100 ° C
- Over temperature protection recovery: 85 ° C
- Static power consumption <50uA
- After filling, the total battery voltage is >16.8V
