Περιγραφή
Χαρακτηριστικά:

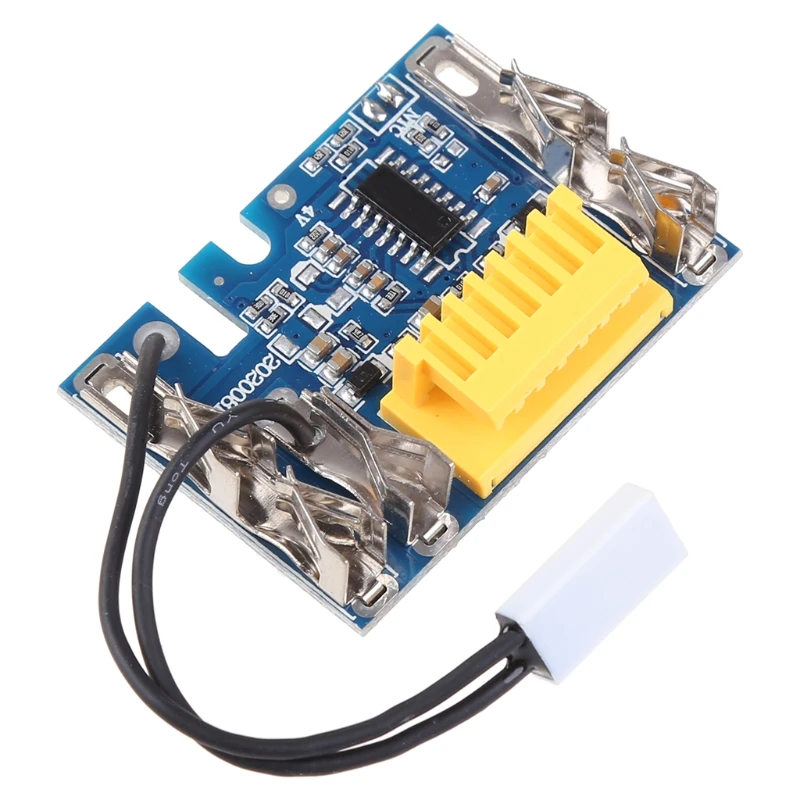

Πλακέτα Συμβατή με Makita 18V BL1830 BL1840 BL1850 BL1860 Power Tool Battery
Αντικαθιστά την χαλασμένη πλακέτα BMS της μπαταρίας σας.
Λειτουργίες:
- over-charge protection
- over-discharge protection
- short circuit protection
- over current protection
- reverse charge protection
- overheat protection
Χαρακτηριστικά:
- Compatible with: for 18V BL1830 BL1840 BL1850 BL1860 power tool battery
- Type: charging protection board
- Voltage: 18V
- Nominal Capacity: 3.0Ah
- Battery type: Li-ion
- Battery combination: 5 strings
- Maximum charging current ≤12A
- Overcharge voltage protection: 4.25V
- Overcharge detection delay time: 2S
- Over discharge voltage protection: 14V
- Charge and discharge over temperature protection: 100 ° C
- Over temperature protection recovery: 85 ° C
- Static power consumption <50uA
- After filling, the total battery voltage is >20.2V
