Περιγραφή

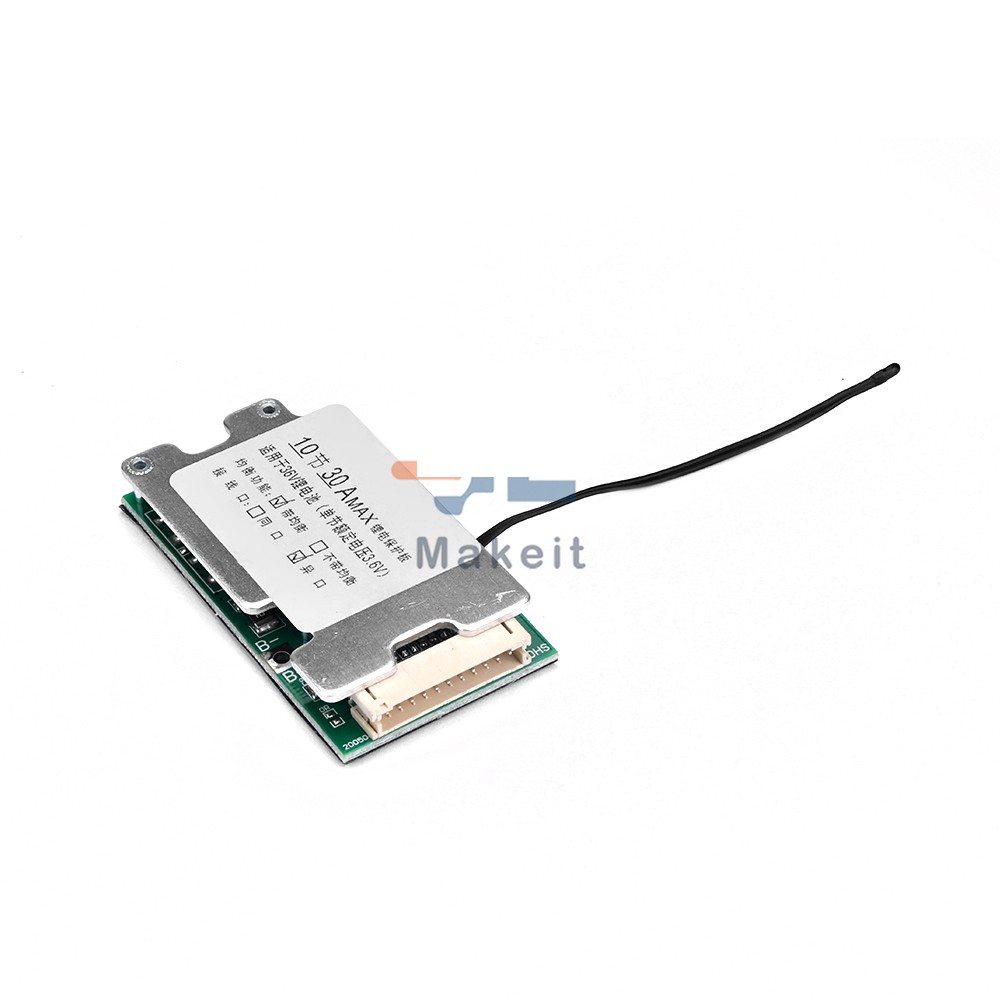

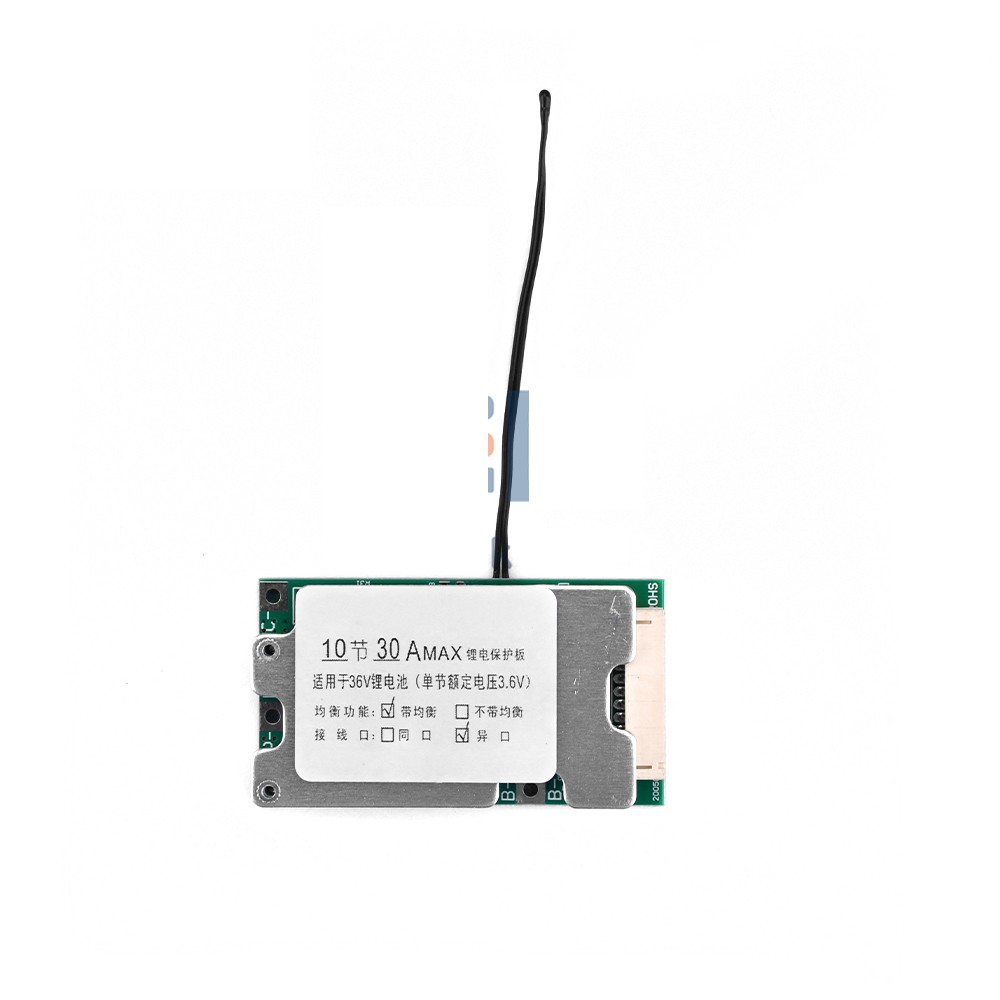

Πλακέτα φόρτισης /προστασίας μπαταριών 18650 Λιθίου BMS 10S 36V 30A, κατάλληλη για ηλεκτρικά ποδήλατα/πατίνια.
Χαρακτηριστικά
- Model: 10 strings of 36V/30A
- Applicable voltage power: 36V; <1000W
- Applicable battery type: 3.7V ternary battery, lithium cobalt oxide, lithium manganate battery
- Function description: lithium battery – overcharge protection; over-discharge protection; overcurrent protection; output short circuit protection.
- Maximum operating current: 40A MAX
- Continuous working maximum current: 25A MAX
- Over-discharge protection voltage: 2.6V
- Overcharge protection voltage: 4.25V
- Charging current: 10A MAX
- Balance charging function: with this function, the balance voltage is 4.2V
- Application areas: electric vehicles; twisting vehicles; electric power bicycles; scooters; inverters, etc.

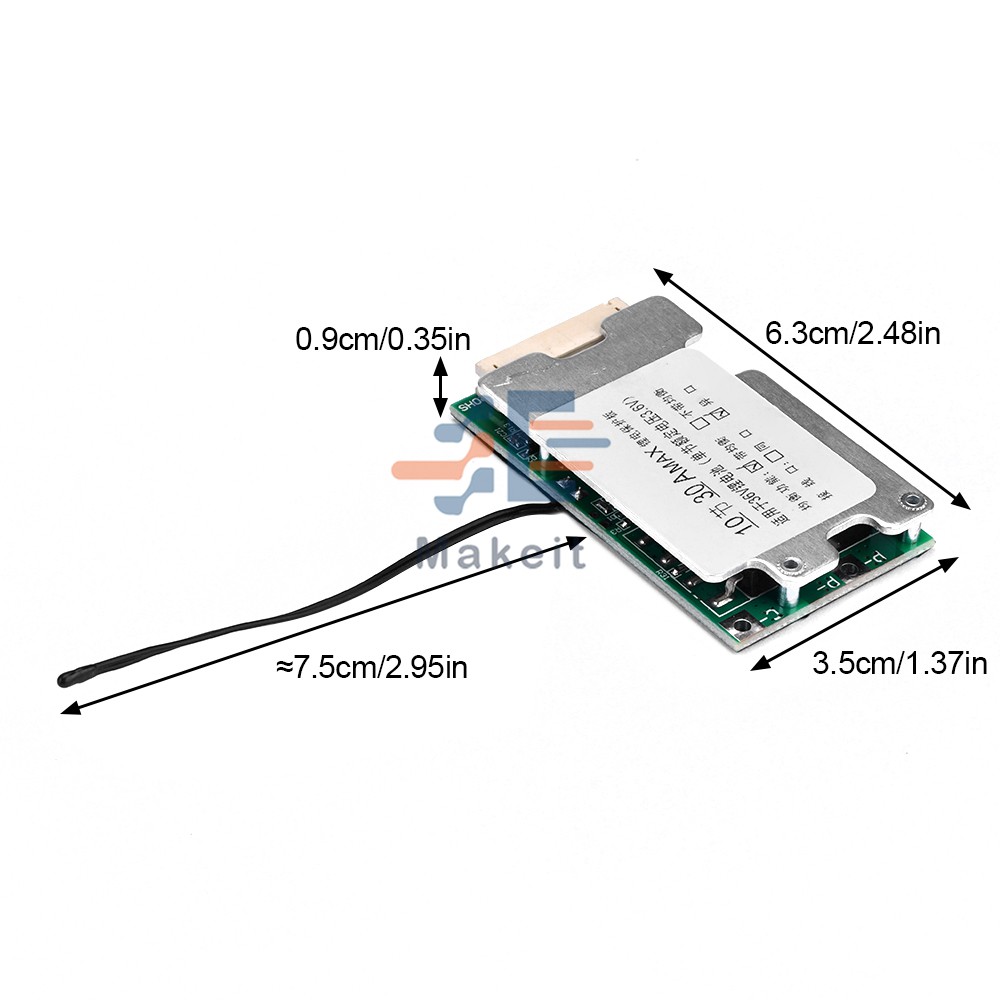

- Dimensions: 64mm*35mm*9mm
- Unit weight: 60g
