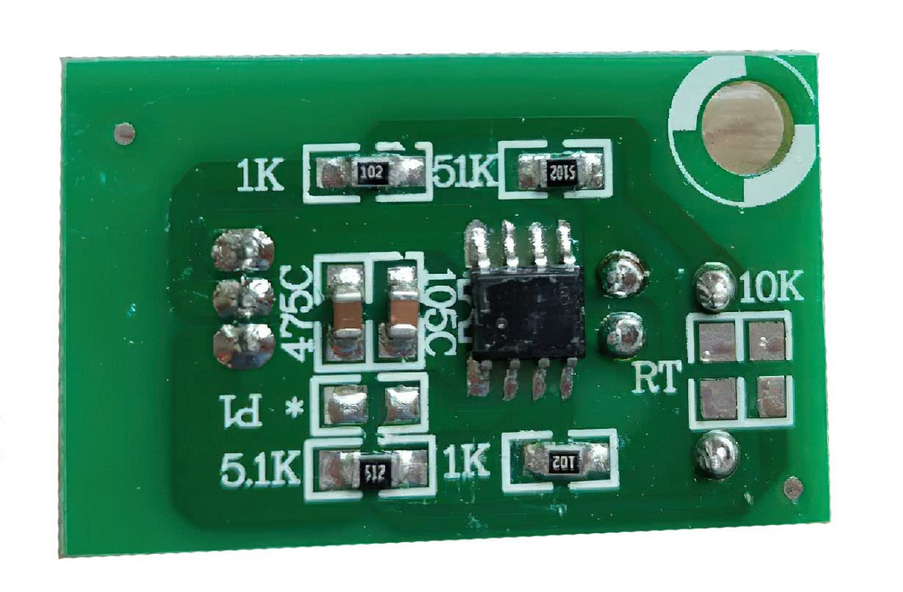

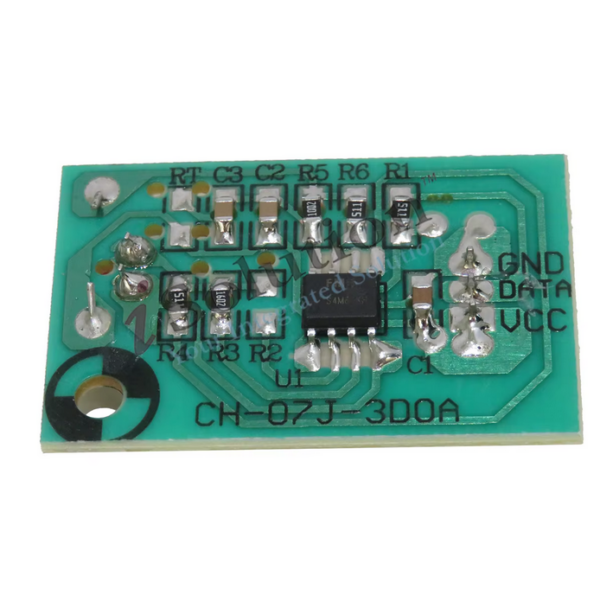

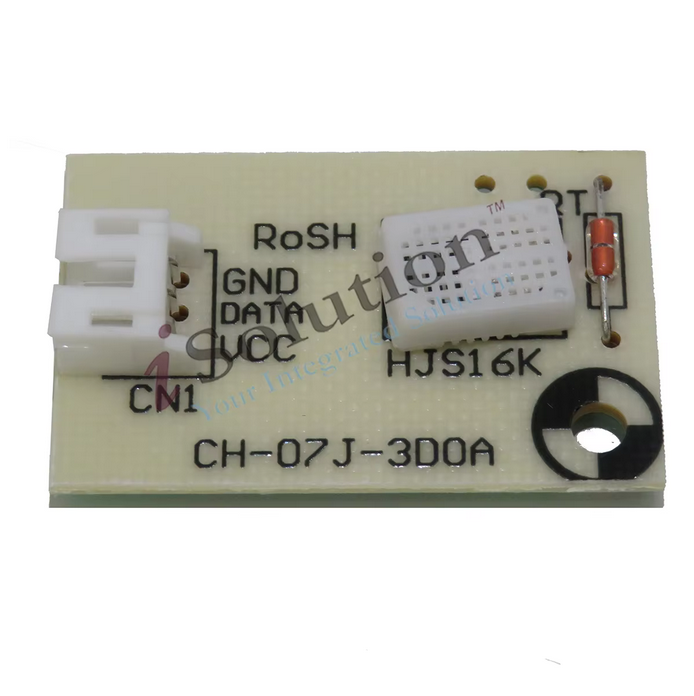

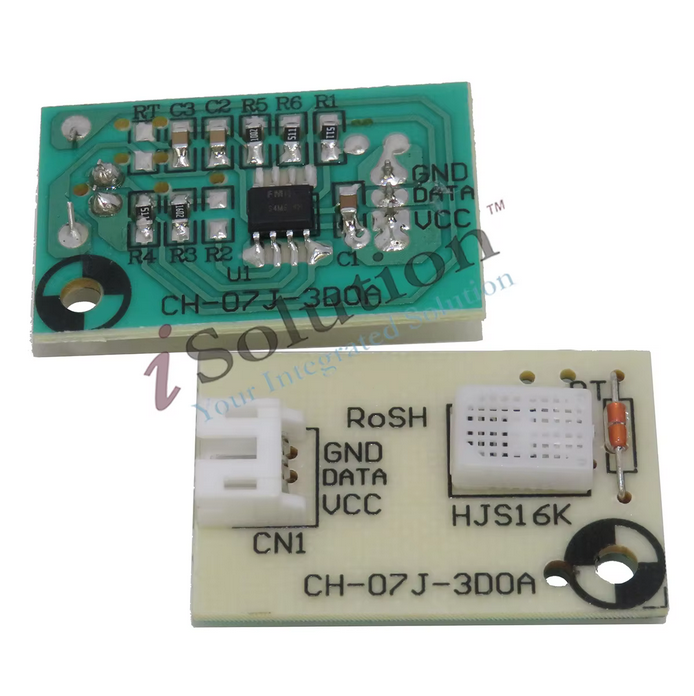

Αισθητήρας υγρασίας για αφυγραντήρα CH-07J-3D0A – ψηφιακός

Περιγραφή

Αισθητήρας υγρασίας για αφυγραντήρα CH-07J-3D0A – ψηφιακός

Features

• Anti-interference, over 5 meters available from sensor to the mainframe
• Easy communication, PPM code transmission by only one wire
• Low cost and control by specialized IC, high precision
• Wide range of application

Specifications

• Humidity sensing element, Japan Hokuriku hygristor (HIS-06-N)
• Connector, single wire serial data, PPM code
• Working voltage, 3.0V-5.5V DC
• Working current, less than 5mA (5.0V DC)
• Working humidity range, 5-95%RH
• Working temperature range, 0-50C
• Temperature detection range, 0-48C
• Humidity detection range 1, 20-99%RH (temperature 25C±1C)
• Humidity detection range 2, 5-99%RH (temperature 5C-45C)
• Humidity detection precision, 35-90%RH ±5%RH(temperature 25C±1C)
• Storage temperature range, -20C to 85C
• Storage humidity range, 95%RH below

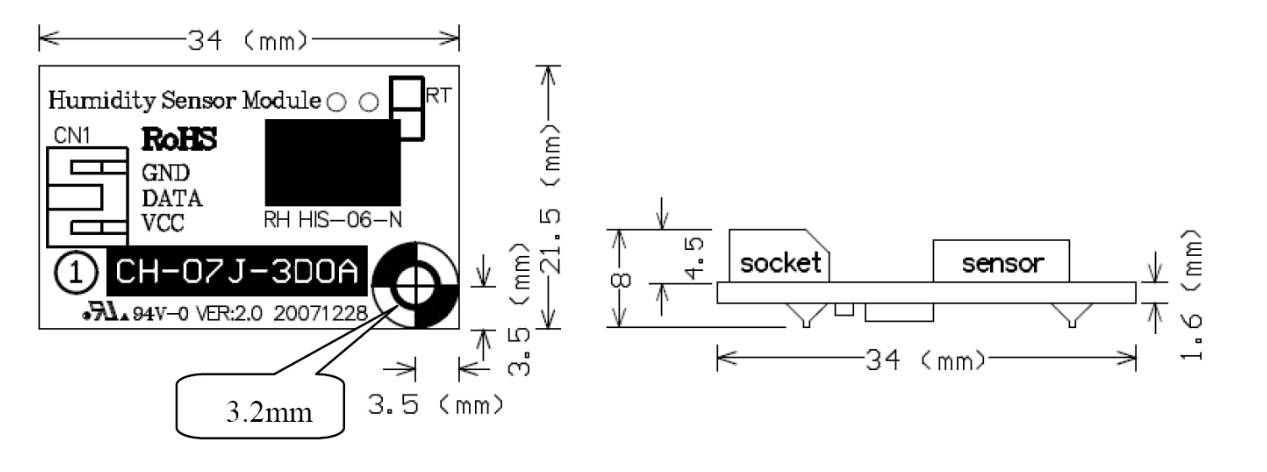

CH-07J-3D0A Datasheet
