Περιγραφή

Μοτέρ FF-180SH-2661 DC 3.7V για κουρευτικές μηχανές Andis και άλλες συσκευές

Specifications:

Brand: MABUCHI MOTOR

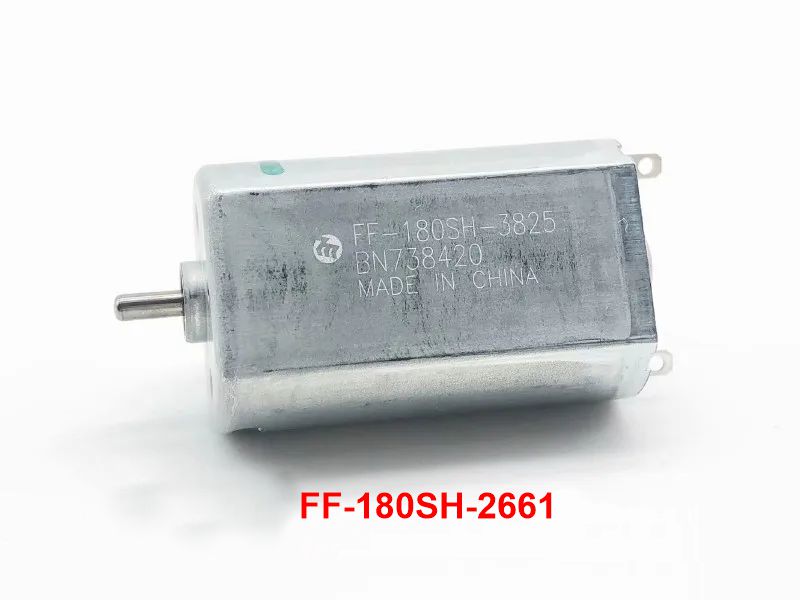

Model: FF-180SH-2661

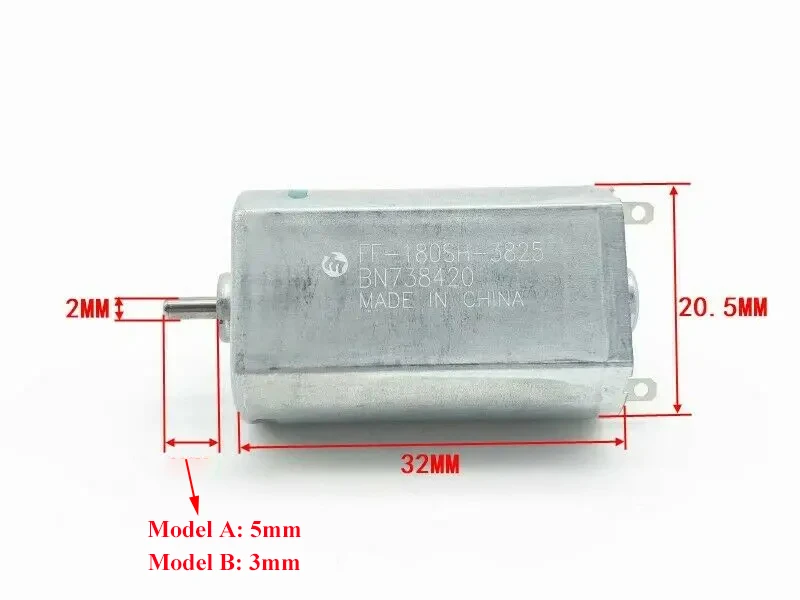

Motor size: 15.4mm*20.5mm
Motor height: 32mm
Output shaft diameter: 2mm
Output shaft length: 5mm
Weight: 32g
Rated voltage: DC 3.7V

Test Data:

Voltage: DC 2.4 V, no-load current: 120 mA, blocked current 1.8 A, no-load speed: 6710 rpm
Voltage: DC 3 volts, no-load current: 140 mA, locked rotor current 3.2 amps, no-load speed: 8675 rpm / min;
Voltage: DC 4.5 volts, no-load current: 140 mA, blocked current 4.8 amps, no-load speed: 13326 rpm;
Voltage: DC 5 volts, no-load current: 140 mA, locked rotor current> 5 amps, no-load speed: 14270 rpm
